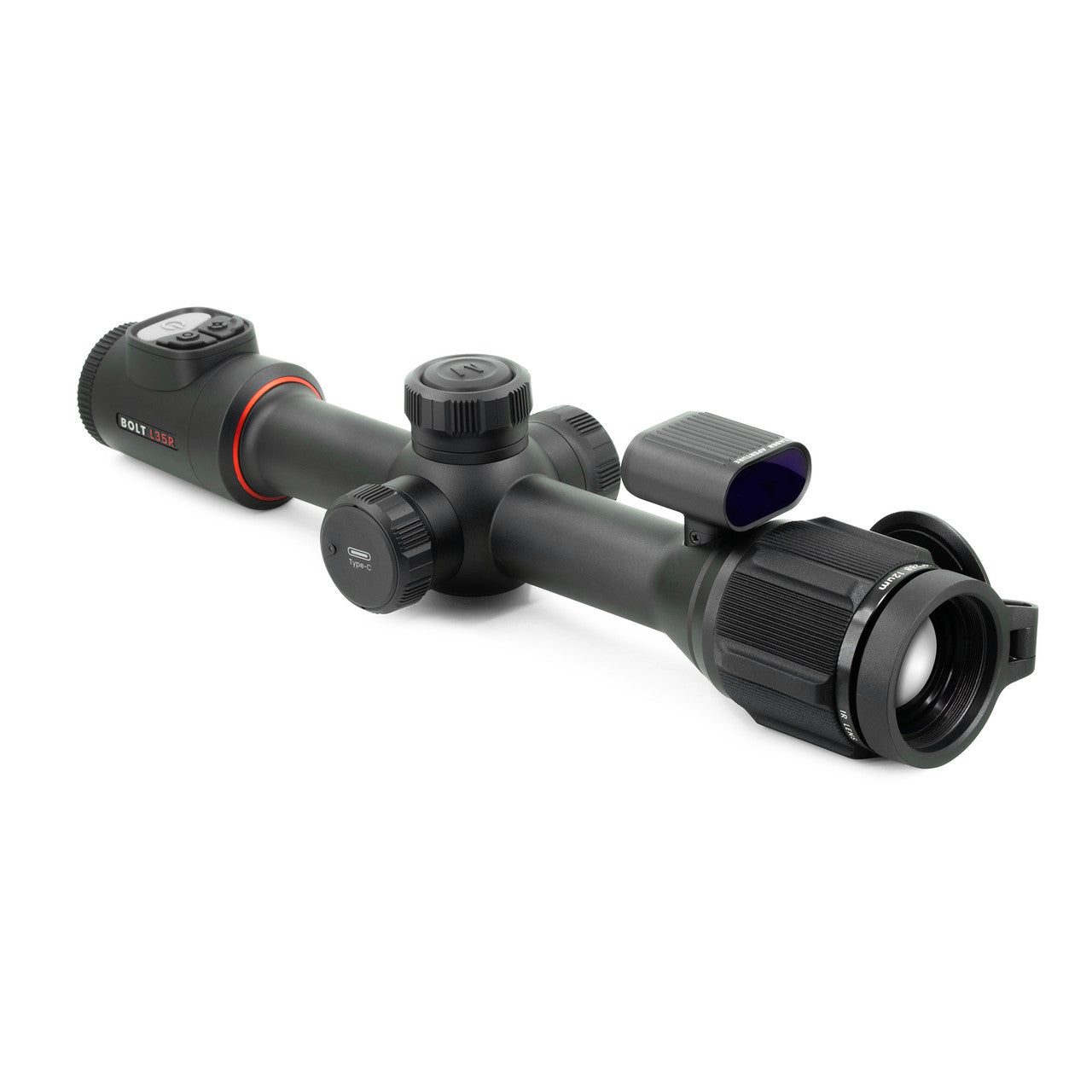

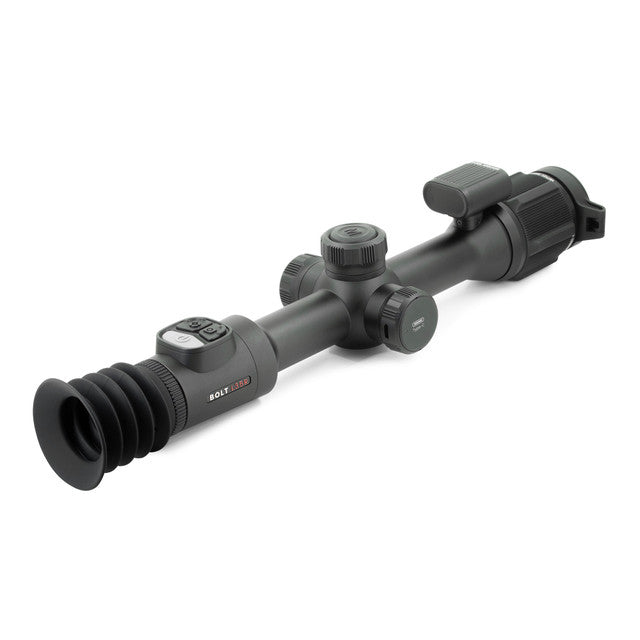

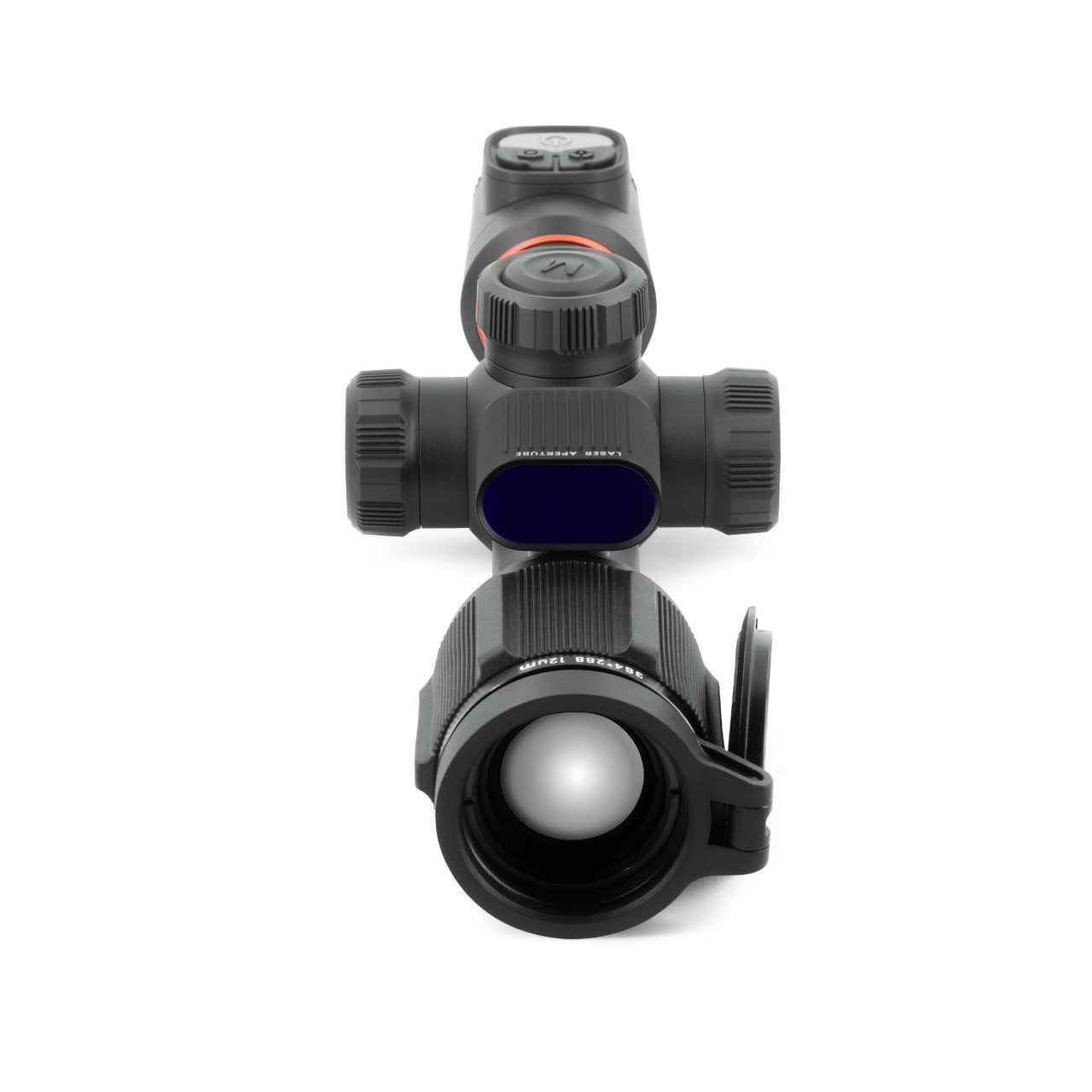

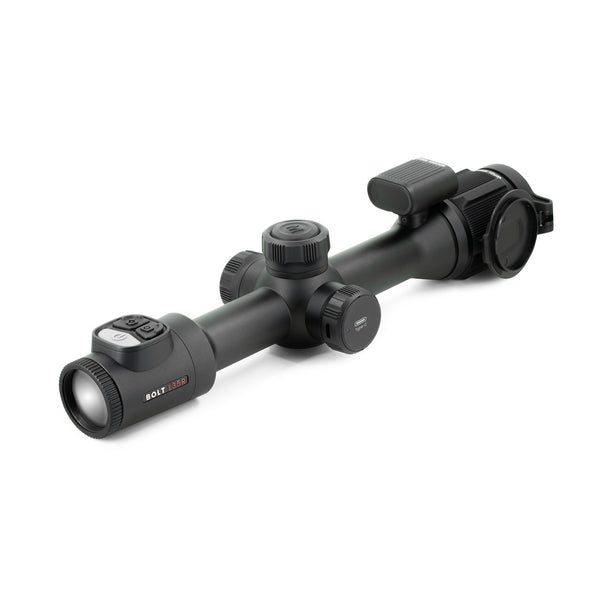

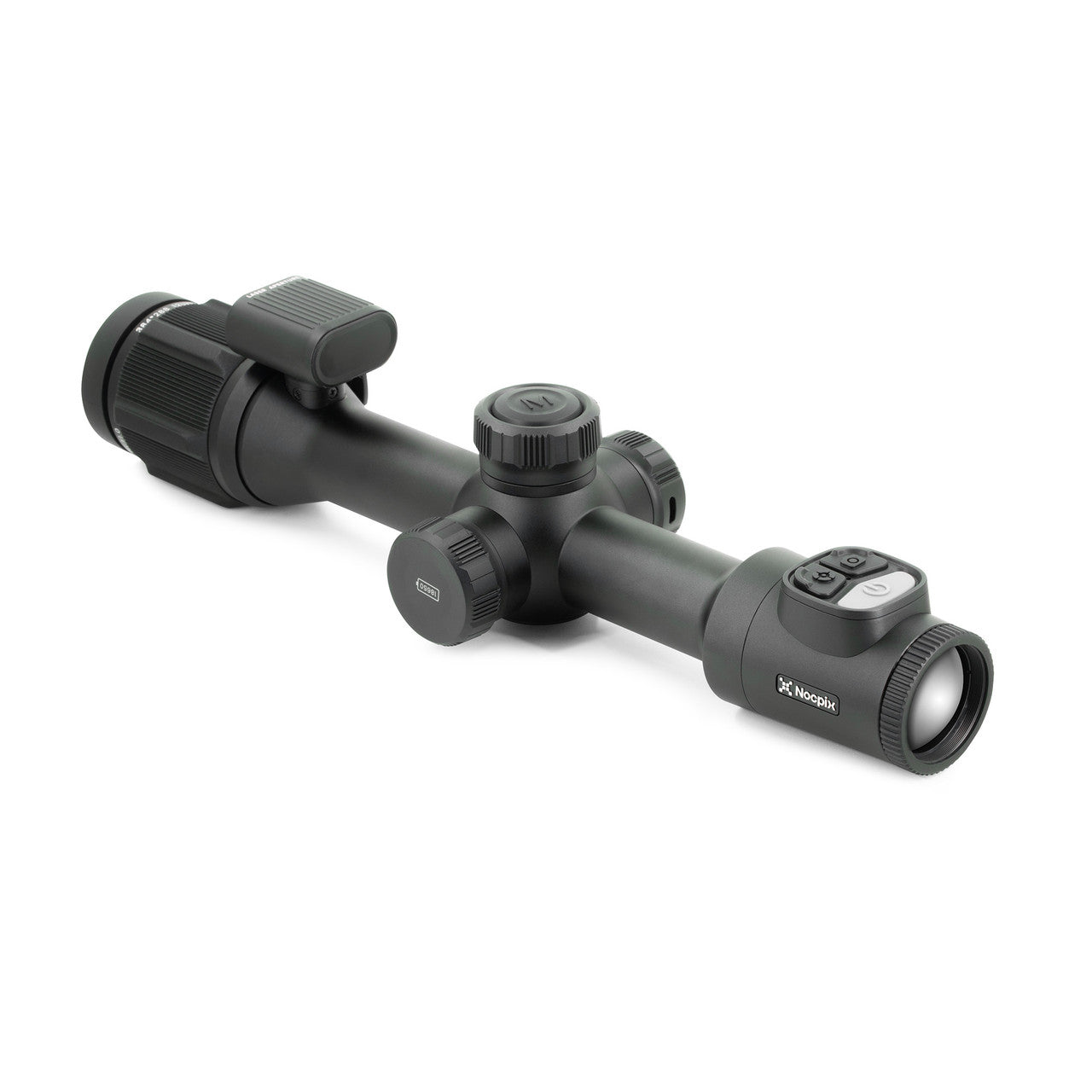

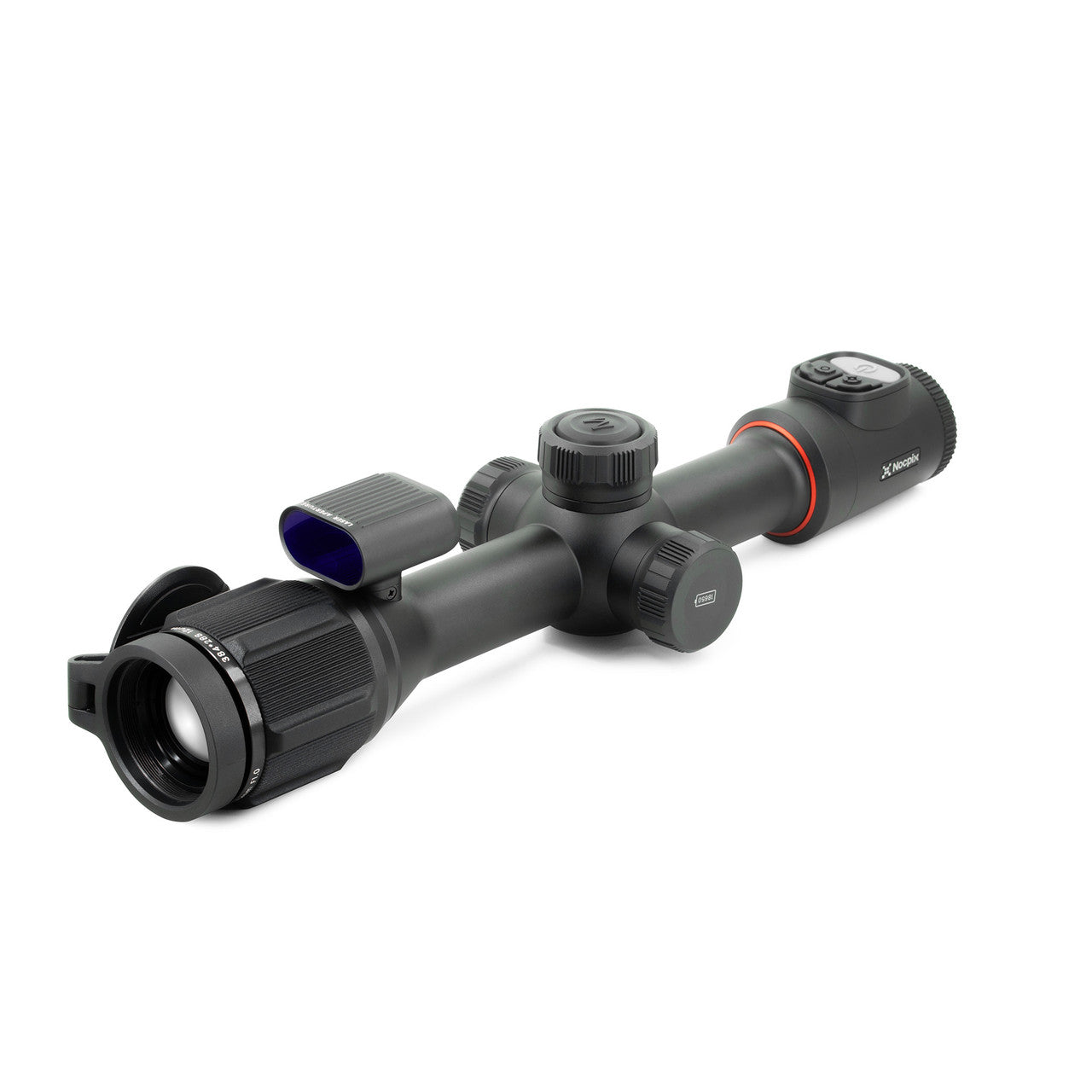

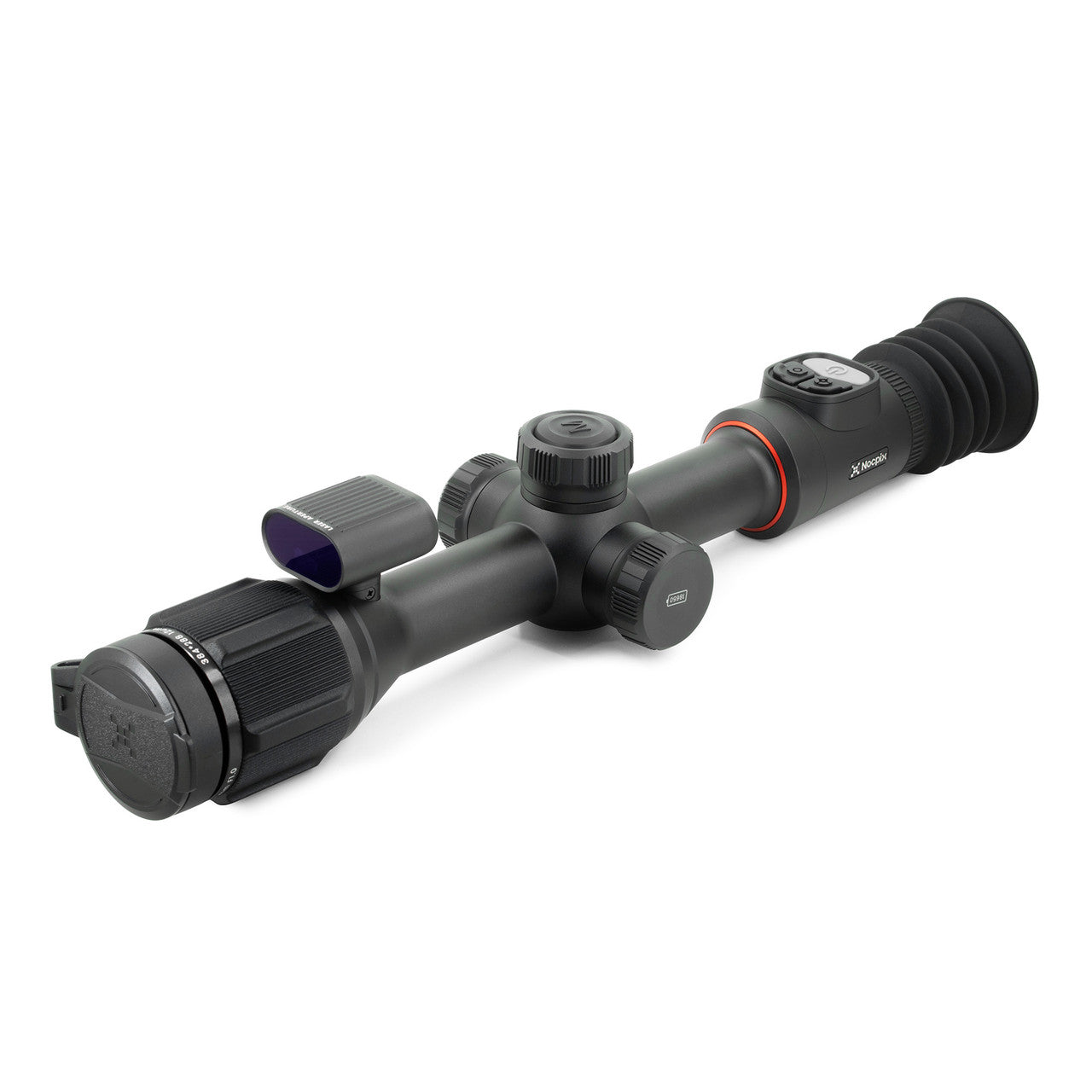

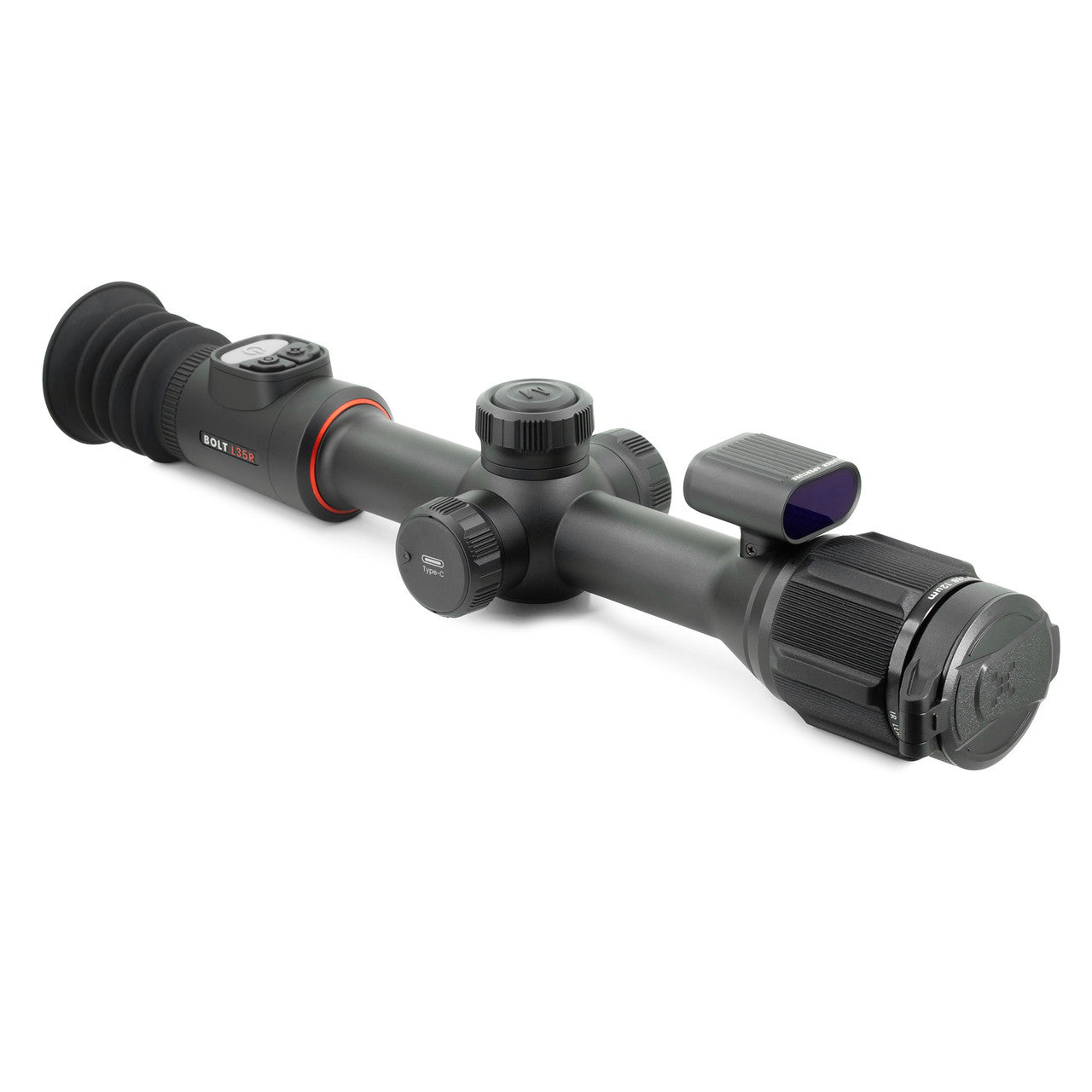

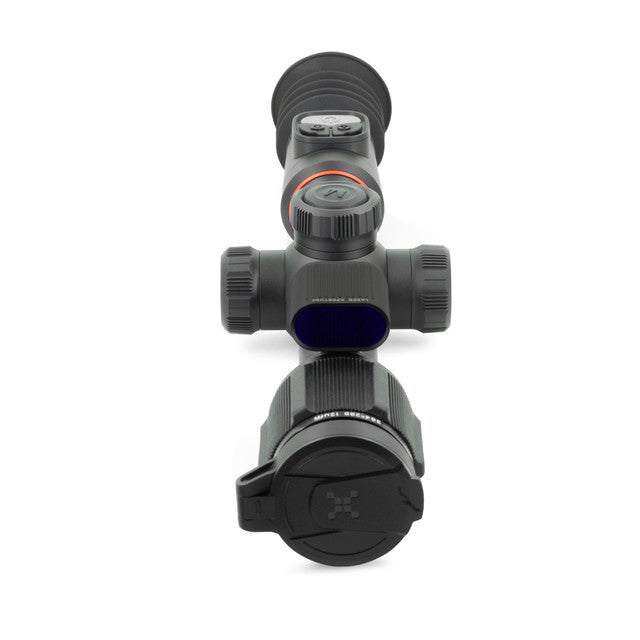

NOCPIX BOLT L35R

New for 2025, the BOLT line brings Nocpix thermal performance into an affordable weapon sight platform. Available in two models, the L35 (384×288) and P25 (256×192), both optics feature an integrated laser rangefinder and ballistic calculator, providing long-range precision without breaking the budget. Built for the field, the BOLT combines an internal rechargeable battery with a removable hot-swappable 18650 auxiliary battery for extended run time. Designed to mount like a traditional day optic, it is compatible with standard 30 mm rings and mounts (not included), making it equally at home on bolt-action and semiautomatic rifles. While not as feature-rich as the ACE series, the BOLT models deliver reliable thermal imaging, intuitive controls, and rugged construction in a streamlined package. For the first time, Nocpix offers a budget-friendly option with a built-in rangefinder, making the BOLT line a tremendous value for shooters looking to step into thermal without compromise on critical capabilities.

• Optics

  Objective Focal Length

  35 mm

  Detection Range

  1970 Yards

  Optical Magnification

  3.5X

  Digital Magnification

  4X

  Objective Lens Material

  Germanium

  Horizontal Angular Field of View

  7.5°

  Vertical Angular Field of View

  5.7°

  Objective Diameter

  35 mm

  Objective F#

  1.0

  Focusing Mechanism

  Manual Focus

  Eye Relief

  50mm

  Display Type

  AMOLED

  Diopter Range

  -5 to +5

  Diopter Range

  -5 to +5

  Display Resolution

  1024×768

• Features & Performance

  Startup Time

  <10 Seconds, Instant from Standby

  Rangefinder

  Integrated 1,300 Yard LRF

  Color Palettes

  White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

  Picture-in-Picture

  Yes

  Storage Capacity

  32 GB

  Connector Output

  Power/Data

  User-Updatable Firmware

  Yes

  Mobile App

  Yes

  One-Shot Zero

  Yes

  Stand-by Mode

  Yes

  Warranty

  5 Years

  Run Time

  6+

  Power Source

  USB-C External, 18650 Battery, Built-In Battery Pack

  Reticle

  8 (7 Static, 1 DIY)

  Connector Type

  USB-C

  External Power Source

  USB-C

  Country of Manufacture

  China

  Wifi

  Yes

  Onboard Recording

  Yes

  Image Capture

  Yes

  Video Output

  Yes

• Environmental Specifications

  Operating Temperature Range

  -4°F~122°F

  Recoil Rating

  1000 g/s² (300 Win./7mm Mag)

  Ingress Protection

  IP67

• Physical

  Length

  14.8

  Width

  3.6

  Height

  3.0

  Weight

  31.0 oz

  Housing Material

  T-6063 Aluminum

• Sensor Specifications

  Device Technology

  Thermal Imaging

  Sensor Type

  Nocpix 384

  Sensor Resolution

  384x288

  Sensor Pixel Size

  12 µm

  Sensor Frame Rate

  50 Hz

  Thermal Sensitivity

  ≤20 mk

  Non-Uniformity Correction (NUC)

  Manual, Automatic, Semi-Automatic
